Includes CK-3000 3 to 5 inch range hone head and standard accessories
Key SpecificationsBore Diameter Range: 0.75 in to 8 in (19 mm to 203 mm)
Stroke Length: Up to 9 in (225 mm)
Spindle Motor: 3 HP (variable speed from 90–350 RPM)
Stroker Motor: 1 HP (variable speed from 40–80 SPM)
Maximum Workpiece Weight: 1,496 lbs (680 kg), including
Core Features
Full Bore Profile Display: A patented touch-screen graphical interface shows real-time cross-sections of the bore geometry so operators can spot and dwell on tighter areas without guessing.
Independent Motors: Separate power systems for the spindle and mechanical stroker deliver consistent crosshatch angles and allow the use of high-efficiency diamond honing systems.
Built-in Coolant System: Integrated filtration and fluid delivery designed to handle heavy-duty industrial and automotive machining.

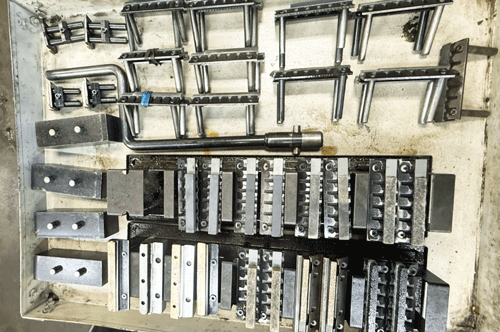

Other hone heads , supplies and stones available at extra cost
Located in JEFFERSON CITY MISSOURI
800-841-5405, 712-852-4627
