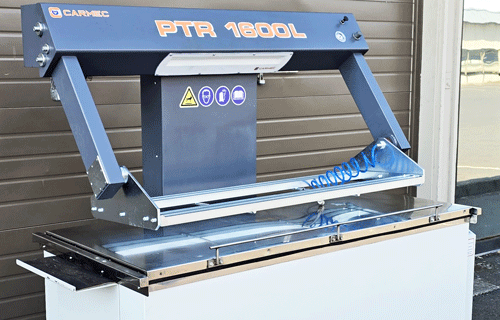

Carmec PRT1600L Cylinder Head Pressure Tester.

Brand New Open Crate High Quality Carmec PRT1600L Cylinder Head Pressure Tester. Will do up to a 53x15.5x11.81 Head

The PTR hydraulic pressure tester or test bench allows for the quick and easy detection of fissures and cracks and the water tightness control in the cooling circuits of cylinder heads and engine blocks.

The pressure tester works following a basic principle that consists of plugging all the outlets of the cooling circuit of the cylinder head using rubber stoppers and then injecting pressurized air into the circuit. The cylinder head is then immersed in a hot-water bath and if it contains any cracks or fissures, a stream of air bubbles will be observed rising to the surface of the bath.

The machine has been specially designed for continuous use and is comfortable and simple to operate. Furthermore, the machine requires a minimum amount of maintenance and comes fully equipped with high quality, in-built security features.

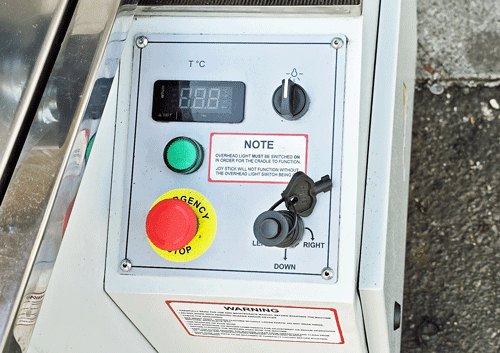

The pressure tester is fitted with a programmable heater which allows the water to be preheated on a daily basis.The temperature of the water is regulated by means of an electronic thermostat control.

Hydraulic arms move the cradle holding the piece to be tested. The cradle is moved vertically by means of a hydraulic system. The cradle can also rotate a full 360 degrees making it far easier to check all sides of the cylinder head from every angle.

The water tank and lid are both thermally insulated thus preventing heat loss and substantially reducing operational costs of the machine.The water is heated by means of two 4.5kW elements.The machine is fitted with a safety mechanism that controls the level of the water.
